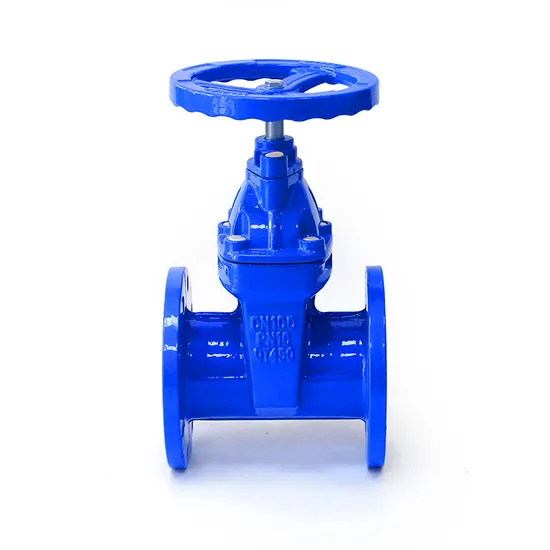

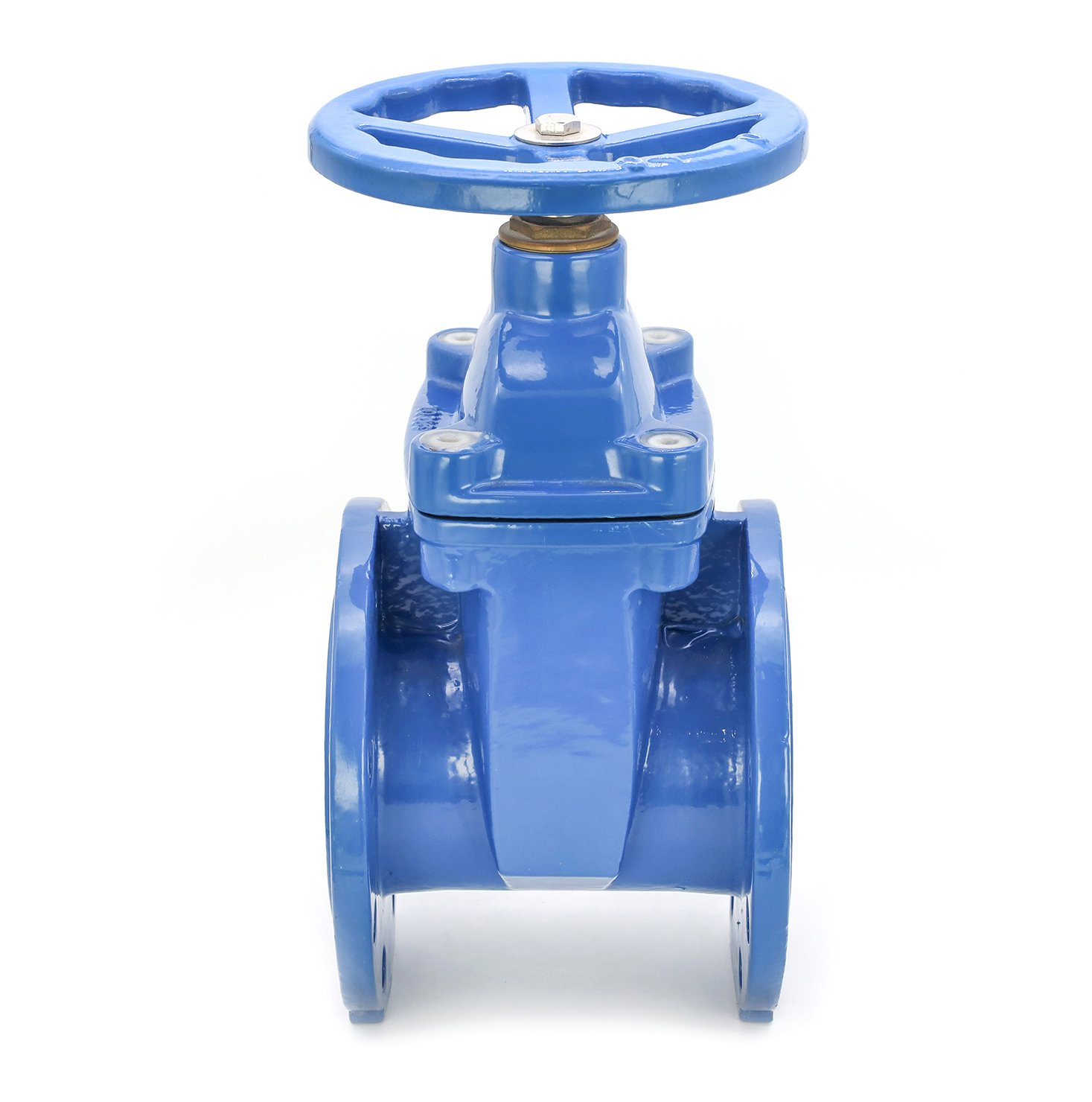

Engineered for robust performance in demanding B2B applications, this ductile iron flanged gate valve ensures reliable flow control in water supply and industrial pipelines.
Constructed from high-strength ductile iron for superior durability and longevity in industrial environments.
Features a corrosion-resistant epoxy resin coating applied through a high-temperature integrated spraying process.

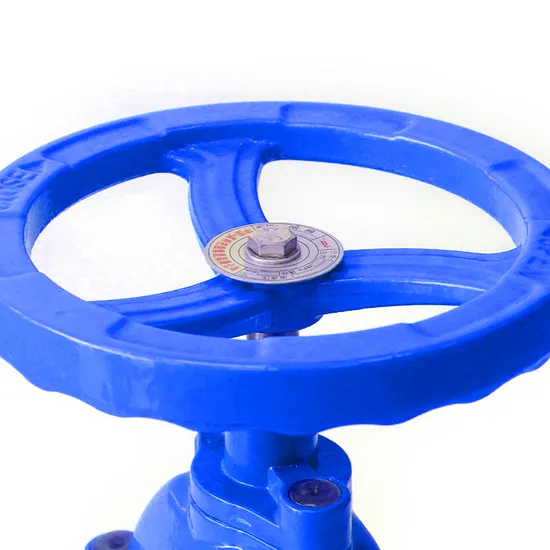

Equipped with a precision-rolled valve stem and brass forged shaft sleeve for smooth, low-torque operation and wear resistance.
The valve plate utilizes an integrated EPDM soft seal, ensuring tight, bi-directional sealing regardless of medium flow.
Designed with standard flange connections for straightforward installation in fire fighting, water supply, and pipeline systems.
Engineered for reliable performance under ordinary temperature and pressure conditions (PN16).
Model: Z45X-16Q
Body Material: Ductile Iron / Cast Iron
Connection: Flange
Nominal Pressure: PN16
Applicable Medium: Water
Size Range: DN 50-1000
